JOHANSSON DiSEqC Stacker / De-Stacker

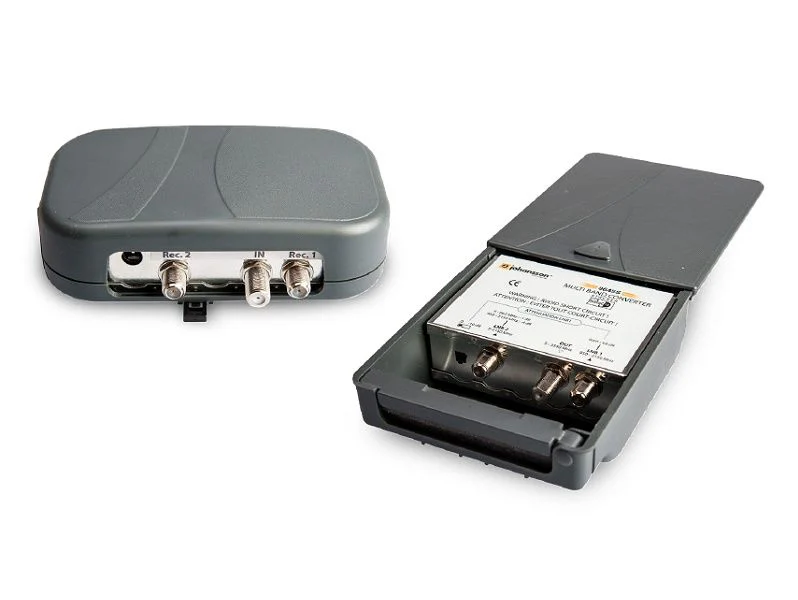

Product image 1

JOHANSSON DiSEqC Stacker / De-Stacker


9645KIT Stacker-Destacker

Two input Band stacking Multi Band Converter

The Stacker-Destacker is the perfect solution to upgrade an old single-cable system with a twin LNB (or quad + DiSEqC switch ref 9920).

To be used in combination with a dual input receiver (PVR) or 2 separate single input receivers.

No power adapter needed.
Power the device with the satellite receiver.
Wall / mast mounting with strap.



How it works?

Instruction PDF

Specifications


9645KIT
Stacker Destacker
Inputs - 2 1
Input frequency  MHz 5-2150 MHz / 950-2150 MHz  5-3550 MHz with "F" High Quality connector
Outputs - 1 2
Output frequency MHz 5-3550 MHz with "F" High Quality connector  5-2150 MHz / 950-2150 MHz
Insertion loss / gain dB -1 @ 5-862 MHz
-3 @ 950-2150Mhz
Converted Sat. Pos. 1 (0 dB) = +6
Converted Sat. Pos. 2 (10 dB att.) = +4		 -1 @ 5-862 MHz
-3 @ 950-2150Mhz
Converted Sat. = +5
Max. Input level dB”V Pos. 1 (0dB) = 88 Pos. 2 (10 dB att.) = 98 -
Consumption  W 1,4
Optional power adapter available for more LNB current Ø 2.1mm
Dimensions  mm 125 x 115 x 45  150 x 90 x 40
General specification  - Operating system up to 75m CT100 or 17 VAtC coaxial cable


9645KIT Stacker-Destacker

Two input Band stacking Multi Band Converter

The Stacker-Destacker is the perfect solution to upgrade an old single-cable system with a twin LNB (or quad + DiSEqC switch ref 9920).

To be used in combination with a dual input receiver (PVR) or 2 separate single input receivers.

No power adapter needed.
Power the device with the satellite receiver.
Wall / mast mounting with strap.



How it works?

Instruction PDF

Specifications


9645KIT
Stacker Destacker
Inputs - 2 1
Input frequency  MHz 5-2150 MHz / 950-2150 MHz  5-3550 MHz with "F" High Quality connector
Outputs - 1 2
Output frequency MHz 5-3550 MHz with "F" High Quality connector  5-2150 MHz / 950-2150 MHz
Insertion loss / gain dB -1 @ 5-862 MHz
-3 @ 950-2150Mhz
Converted Sat. Pos. 1 (0 dB) = +6
Converted Sat. Pos. 2 (10 dB att.) = +4		 -1 @ 5-862 MHz
-3 @ 950-2150Mhz
Converted Sat. = +5
Max. Input level dB”V Pos. 1 (0dB) = 88 Pos. 2 (10 dB att.) = 98 -
Consumption  W 1,4
Optional power adapter available for more LNB current Ø 2.1mm
Dimensions  mm 125 x 115 x 45  150 x 90 x 40
General specification  - Operating system up to 75m CT100 or 17 VAtC coaxial cable
