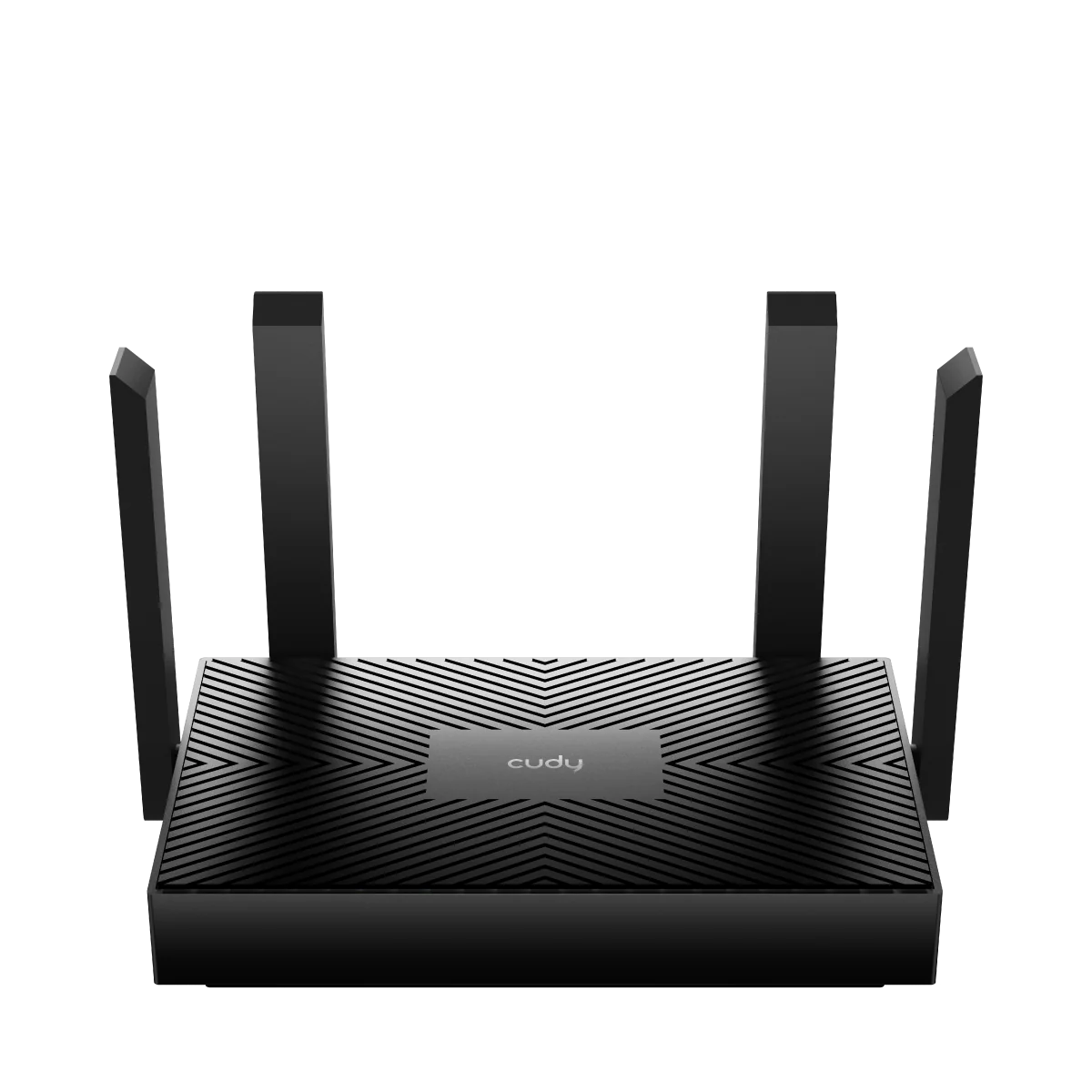

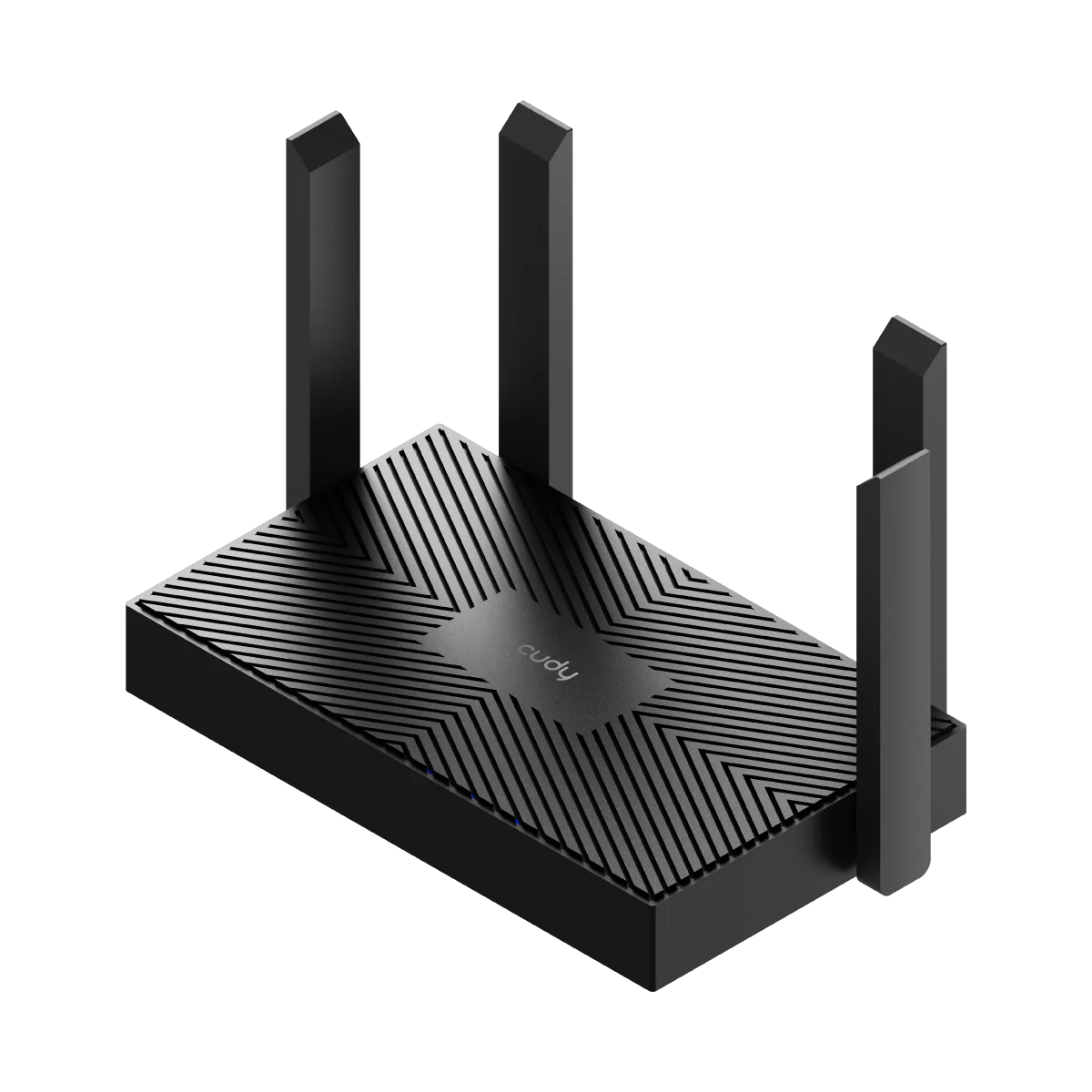

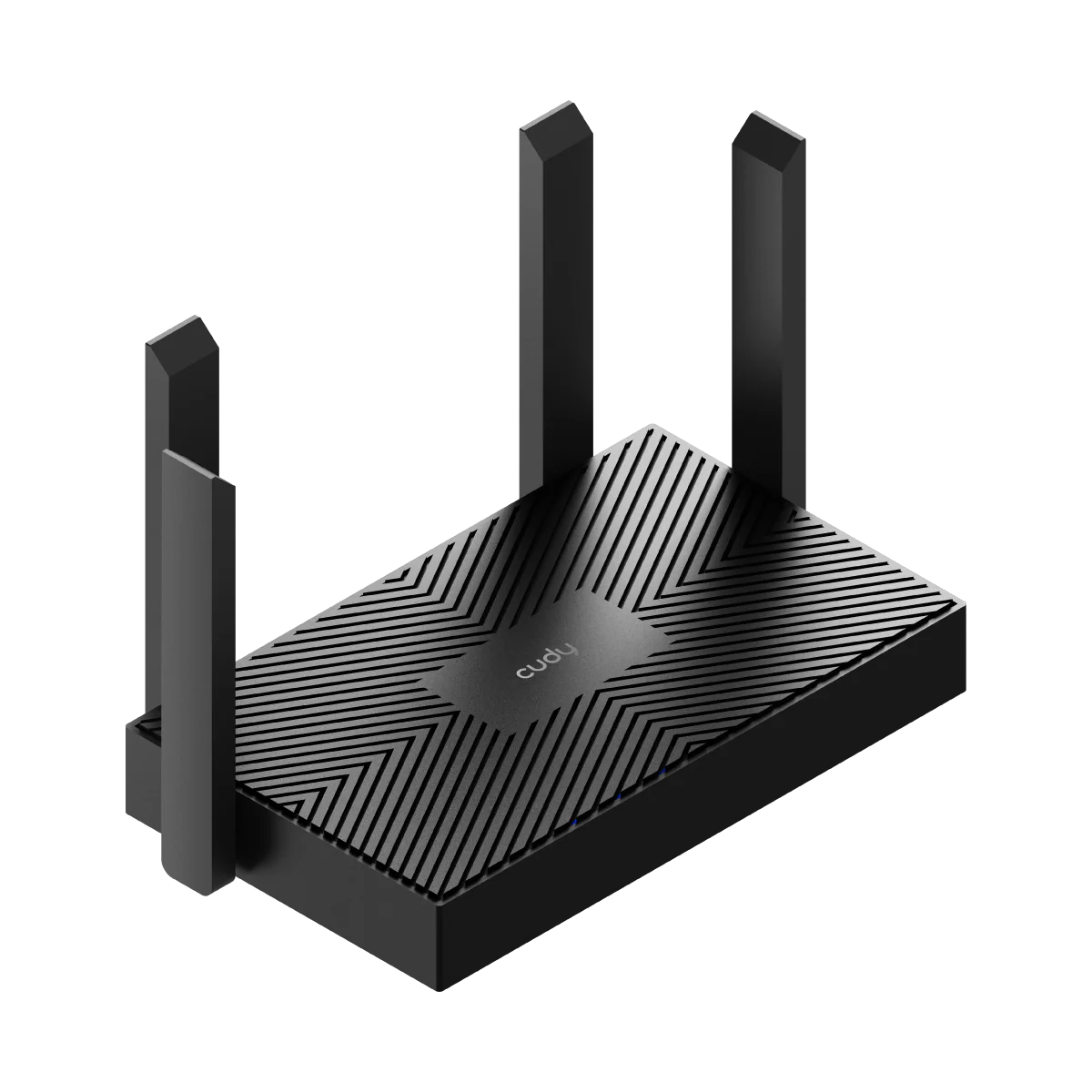

Cudy AX1500 Gigabit WiFi 6 Router WR1500

Product image 1
1 / 5

Cudy AX1500 Gigabit WiFi 6 Router WR1500

Cudy AX1500 Gigabit WiFi 6 Router WR1500

Features

A Gigabit WiFi 6 router with the efficiency features of OFDMA and MU-MIMO, suitable for larger capacity scenarios.



  • 4-Stream Dual-Band Wi-Fi 6
  • 1201 Mbps + 300 Mbps Wi-Fi 1
  • 4× Gigabit Ethernet Ports
  • 60 Connected Devices 2
  • Covers 100m² (1,100 ft²) 3
  • MU-MIMO, OFDMA, Beamforming



Key Specification

Model Version WR1500 1.0
CPU Chipset RTL8197H
  CPU Details 1 GHz CPU
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
  DDR/RAM 128 MB (1 Gbit) DDR2
Wireless 5 GHz Wi-Fi Speed 1201 Mbps
  2.4 GHz Wi-Fi Speed 300 Mbps
  5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  Wi-Fi Antennas 4× Fixed
  FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
  Beamforming True
  Range Performance Max: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
  Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

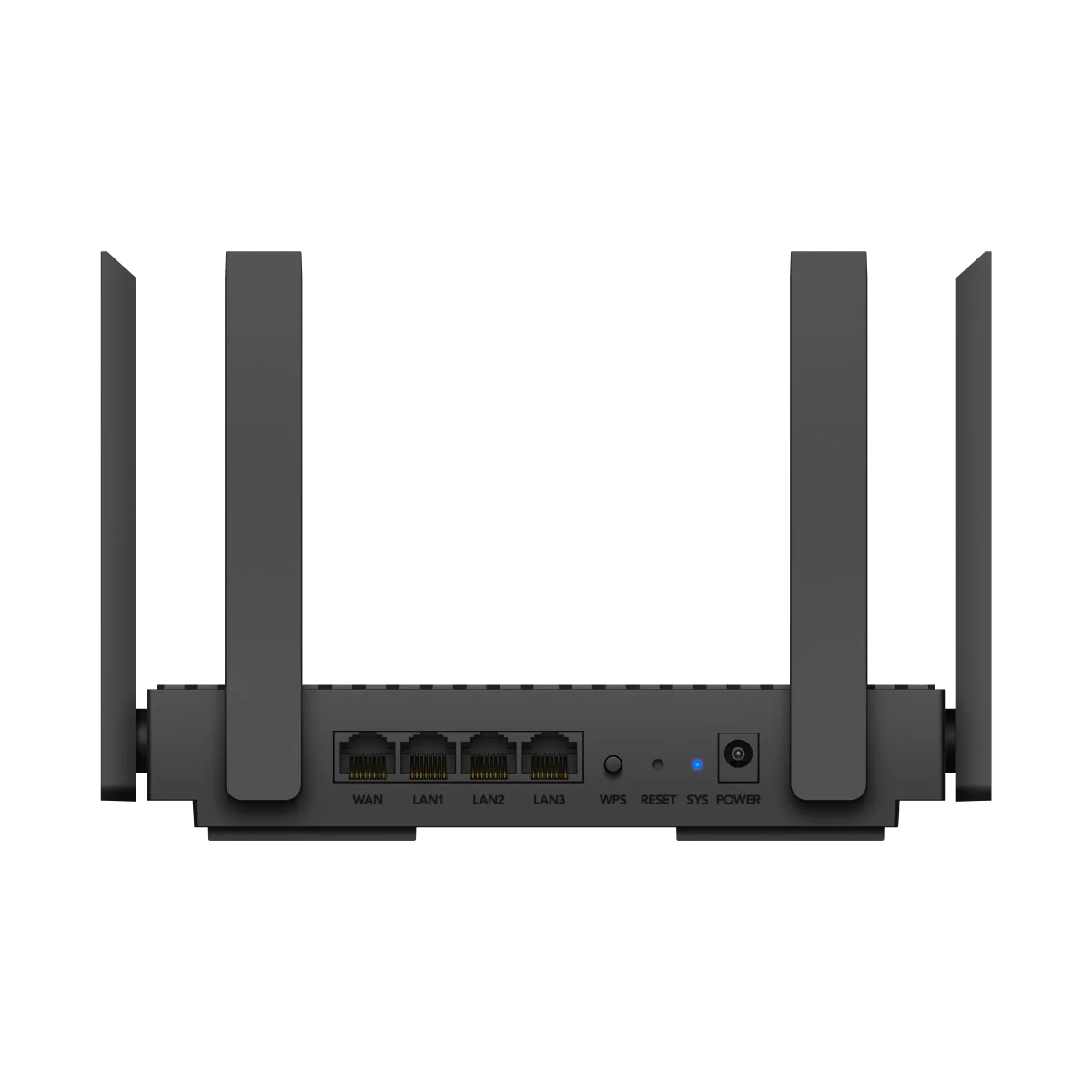

Interfaces Gigabit RJ45 Ports 4
  Ethernet Notes 1× WAN port, the rest are LAN ports
  LED System
  Physical Buttons
  • WPS Button
  • Reset Button
  Power Input DC Jack
Power Power Methods DC
  DC 12V 1A
  Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
  Max Power Consumption (W) 10W
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation
  • Desktop
  • Wall-mount
  Dimension 183.3×109×35 mm
7.22×4.29×1.38 inches
  Product Weight
  • EU: 220 g (7.76 oz.)
  • ZH: 224.6 g (7.92 oz.)

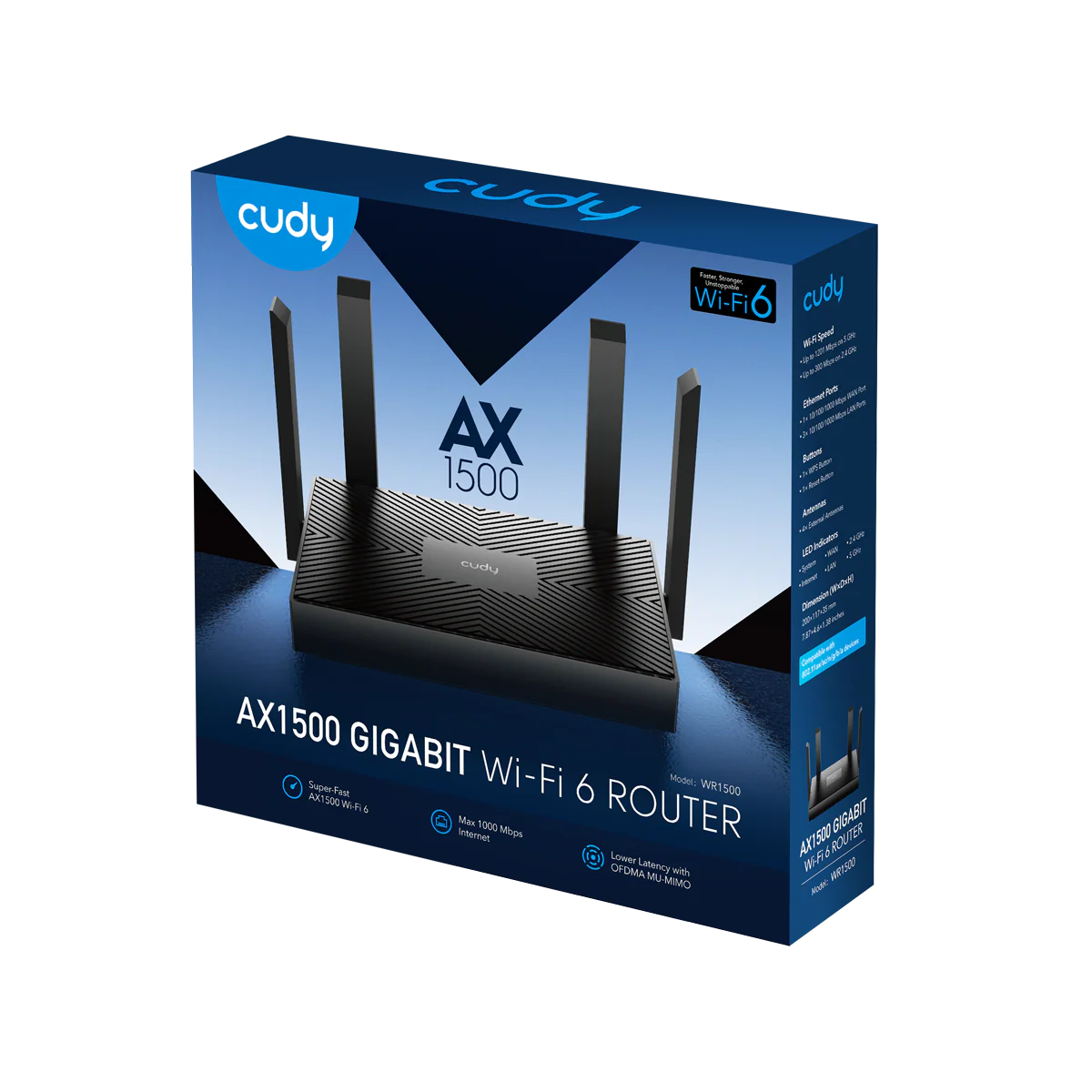

Package Content
  • WR1500
  • Power Adapter
  • Ethernet Cable
  • Installation Guide

Cudy AX1500 Gigabit WiFi 6 Router WR1500

Features

A Gigabit WiFi 6 router with the efficiency features of OFDMA and MU-MIMO, suitable for larger capacity scenarios.



  • 4-Stream Dual-Band Wi-Fi 6
  • 1201 Mbps + 300 Mbps Wi-Fi 1
  • 4× Gigabit Ethernet Ports
  • 60 Connected Devices 2
  • Covers 100m² (1,100 ft²) 3
  • MU-MIMO, OFDMA, Beamforming



Key Specification

Model Version WR1500 1.0
CPU Chipset RTL8197H
  CPU Details 1 GHz CPU
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
  DDR/RAM 128 MB (1 Gbit) DDR2
Wireless 5 GHz Wi-Fi Speed 1201 Mbps
  2.4 GHz Wi-Fi Speed 300 Mbps
  5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  Wi-Fi Antennas 4× Fixed
  FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
  Beamforming True
  Range Performance Max: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
  Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Interfaces Gigabit RJ45 Ports 4
  Ethernet Notes 1× WAN port, the rest are LAN ports
  LED System
  Physical Buttons
  • WPS Button
  • Reset Button
  Power Input DC Jack
Power Power Methods DC
  DC 12V 1A
  Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
  Max Power Consumption (W) 10W
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation
  • Desktop
  • Wall-mount
  Dimension 183.3×109×35 mm
7.22×4.29×1.38 inches
  Product Weight
  • EU: 220 g (7.76 oz.)
  • ZH: 224.6 g (7.92 oz.)
Package Content
  • WR1500
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
$26.42

Original: $75.48

-65%
Cudy AX1500 Gigabit WiFi 6 Router WR1500—

$75.48

$26.42
